dyno run

50 posts · Started by Astroboy · 21 Aug 2010

Archived topic · Replies closedJump to last post ↓

Post 1 by Astroboy,

#1
Did a dyno run today on a nakedbike-meeting in Belgium.
The results are very good: 105,2Nm and 120,8 Bhp @ the rearwheel and no dip in the run what so ever !

I had a strong SD he said.

The spec's on my bike are: standard engine, 16t and akra-mufflers (no db-killers)

Are there others owners who did a dynorun on there bikes?

Post 2 by Colonel_Klinck,

#2
Nice strong figures m8.

Here is mine.
2006 SD, Akra no db killer, Motobox.
122.84hp and 75.2ftlb

Post up your charts dude.



Post 3 by KTM666,

#3
Decided to finish off moding my Superduke and get all the bits I wanted .....as I just love riding the SD ...road and Track ........found local Dyno who uses TuneECU (up till now .....mostly on Triumphs) he mapped my Track R1 last year which absolutely flew afterwards .. and was silky smooth on fuelling

My SD had Half Akrapovic, DNA mk3, Flies removed RC8 stacks PC3 custom map......was making 127.85hp and 78.87Ft/lb...(before I added RC8 Stacks)

My SD now has with Full Akrapovic to go with DNA mk3 and Flies Removed, RC8 Stacks, PC3 removed, TuneECU Custom map individual Cylinders

Just with the full akrapovics it was so much better, wheeling everywhere...without trying....so I finally got it mapped

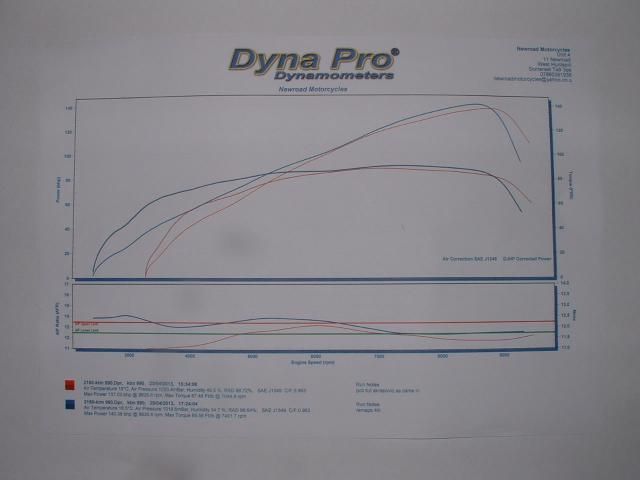

The red line is the the above spec.......it was running WAY to rich.....did the RC8 stacks make that much difference

Blue line with custom map installed .....140.38hp and 89.56Ft/lb



Post 4 by Superdan,

#4
I don't care what they say about BHP figures, temp/conservative blah blah

no excuses now

Post 5 by No. 47,

#5
Huntspill?

Post 6 by The Gin Reaper,

#6
Post missing

This post could not be recovered from the original forum.

Post 7 by Colonel_Klinck,

#7
Wow those are some great figures. Group 3 in Almeria come Sept now Nick

Did you try a back to back with standard stacks? I found the RC8 lost a lot of mid range but gained some top HP. Prefer the midrange myself.

Post 8 by KTM666,

#8
Post missing

This post could not be recovered from the original forum.

Post 9 by stalker,

#9
starting to feel sorry for myself here , , i only have 115

Post 10 by KTM666,

#10
Post missing

This post could not be recovered from the original forum.

Post 11 by KTM666,

#11
Post missing

This post could not be recovered from the original forum.

Post 12 by stalker,

#12
yep , high time i found myself some hp ,

Post 13 by No. 47,

#13
Eye’m zorree, eye, doughn unnerstan. Cud e speek uh liddle zlower pleeze?

Post 14 by KTM666,

#14
Post missing

This post could not be recovered from the original forum.

Post 15 by fazer_1000,

#15
Just to get an idea, what does a standard SD puts out at the wheel?

Unfortunately no Dyno here for us.

Post 16 by Superdan,

#16
between 107 and 116 really. SDR 08-11 is quoted as having 130.

Post 17 by fazer_1000,

#17
Post missing

This post could not be recovered from the original forum.

Post 18 by Colonel_Klinck,

#18
Post missing

This post could not be recovered from the original forum.

Post 19 by Superdan,

#19
Post missing

This post could not be recovered from the original forum.

Post 20 by Ducati Pete,

#20
Dan's toohomo is a thing of beauty.

Post 21 by fazer_1000,

#21
Post missing

This post could not be recovered from the original forum.

Post 22 by Superdan,

#22
Well I was not going to post it up on here for obvious reasons But here you go. (sorry to thread crash ) Its not quite finished yet it will get fully modded before the crashfest though

Its pretty in kind of Kirsty Allsop kind of way, she may have a few extra pounds but you still would








Post 23 by Ducati Pete,

#23
That is supercool.

Great work Dan.

Post 24 by CEREC1,

#24
Really looking forward to seeing and even more,listening to that bike mate. Sweet looking bargain.

Post 25 by Superdan,

#25
Thanks guys the list of bits im going to buy is fairly big should I like it when I get on track....

Post 26 by Colonel_Klinck,

#26
Stop whoring your bike pics all over KTM666's thread you! Honestly its not even Austrian but a side swapping Italian!

Post 27 by SDNerd,

#27
Post missing

This post could not be recovered from the original forum.

Post 28 by KTM666,

#28
Post missing

This post could not be recovered from the original forum.

Post 29 by Ducati Pete,

#29
The correction factor used by the dyno makes a huge difference. The correction is applied to take into account changes in temperature, barometric pressure, humidity, and altitude.

It's well known that a SAE corrected dyno reads lower than one using a DIN standard. With a superduke you could easily see an additional 10 to 15 ponies just by changing between dyno types.

It's a bit of a muchness as so many other factors can influence the figure. You could ratchet up the holding straps between runs and cause slight differences.

Really, you want a base power run done on that dyno before you make any changes.

Back in the day a friend of mine opened his workshop for a day and large group of friends from one bike dealer tripped up there for a day for a "power shootout" fun thing. I know for a fact he tweeked all the results to avoid dissappointment.

This was the same dyno we tested my friends Original batch TL1000S on. (The dyno WAS NOT tweeked for optomistic results.) I can't remember what the result was but we wanted to get another twin on there straight away because Mr Suzuki had served up a treat. Oddly enough TLs the next year never seemed to be as good.

Post 30 by KTM666,

#30
Pete

Totally agree that SAE weighted dynos give lower readings than Din weighted Dynos

.....…which confuses things still further as New Road (140hp 89 ft/lb) figure was SAE weighted and Creasent (126.52hp) was DIN weighted … .

all academic really...as it goes alot better than it did bfore ....Almeria long straight will tell for sure

Post 31 by Ducati Pete,

#31
Well that's just plain weird.

Post 32 by Superdan,

#32
Post missing

This post could not be recovered from the original forum.

Post 33 by Jermo,

#33
The difference between SAE and DIN is usually around 2-5 percent from my experience. Shape of the graphs should be the same though.
More important is how much pressure is in and on the rear wheel at the dyno and temperature of the air blown on the front of the bike. These things can make up to 10hp differences.

Post 34 by Colonel_Klinck,

#34
Post missing

This post could not be recovered from the original forum.

Post 35 by Colonel_Klinck,

#35
Post missing

This post could not be recovered from the original forum.

Post 36 by Superdan,

#36
Post missing

This post could not be recovered from the original forum.

Post 37 by fazer_1000,

#37
Post missing

This post could not be recovered from the original forum.

Post 38 by KTM666,

#38
Post missing

This post could not be recovered from the original forum.

Post 39 by fazer_1000,

#39
Post missing

This post could not be recovered from the original forum.

Post 40 by KTM666,

#40
O5 Model (O7 Year)

came with 17 -38 (then they changed to 16-38)

Post 41 by KTM666,

#41
F.A.O KTM666, Could I be so rude as to ask how much this garage charges for a dyno run and set up with tuneecu?. I live in Exeter and never had one done.
Cheers Gary.

Post 42 by KTM666,

#42
.......still waiting for the bill



he charges out a £40.00 hour so about 3 /4 hours

Went out around North Devon at the weekend.....its fantastic

Post 43 by Pluto,

#43
Hi Guys,

My mechanic did dyno runs and tuning with my 07 SD (Mivv exhaust + DNA airbox) and I got confusing results. It feels like the bike has lost a lot of power when driving in low rpm ranges.
Maby it's cause my mechanic tried to smoothen things up a little, i must say the beast feels tamed and more controllable than before.
The graph itself is pretty strange, no torque below 4K rpm. And the drops??
The Red lines are the results from the run with the default KTM Akra Mapping.

What do you guys think? I'm pretty confused


Post 44 by KTM666,

#44
...strange

A better map and a better spread of power can feel like less power (seat of the pants dyno ....feels the difference in power ...so a big step...with the wheelie that goes with it feels like moore power ....)

Not like for like runs .......maybe not hitting full throttle straight away on the green run

Post 45 by Jermo,

#45
The one with the drops is taken through the gears and he pulled full throttle around 4K rpm. Because he used a different gear the dyno measured a bigger acceleration and therefor higher power output. He probably synced the dyno rpm with the one of your bike so the gear matters for the reading.

Is the blue line new as well? If so, that's the reference and 'new line' you should look at. Space between the red and blue one would be the power increase.

Post 46 by Mr_Trecolareco,

#46
Here's mine 05 with round akra, motobox, without flies but still with shaft, without sas and akra smoothed map vs lighlty dyno tuned akra map.


And the final version so far ( work in progress as it's his first LC8 and tune ECU software. )


Hope it helps seeing other map because it's all I can do.

The AFR on yours is not real smooth, something my dyno guy spent a lot of time, no only at WOT but around all throttle position and rpm.

Post 47 by ktmguy,

#47
Looks indeed weird. Get the tuneecu setup and try another map.
In my experience the akra map runs overly rich so if your tuner cleaned that up it should be way better now.
It could be just that he run it trough the gears as mentioned above.

If your feel says it doesn't have any grunt below there might be something wrong or tuned wrong.

Post 48 by Pluto,

#48
Post missing

This post could not be recovered from the original forum.

Post 49 by Mr_Trecolareco,

#49
Post missing

This post could not be recovered from the original forum.

Post 50 by Pluto,

#50
Post missing

This post could not be recovered from the original forum.
