Akra Titanium/Carbon transplant success!

27 posts · Started by bic_bicknell · 14 Feb 2010

Archived topic · Replies closedJump to last post ↓

Post 1 by bic_bicknell,

#1

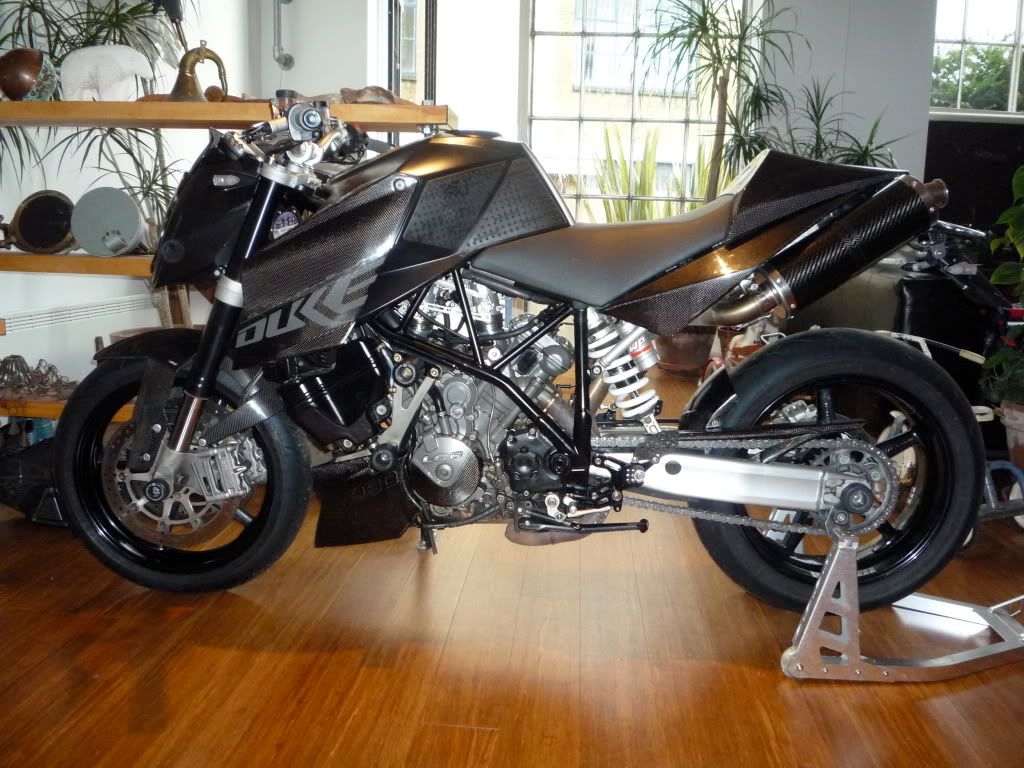

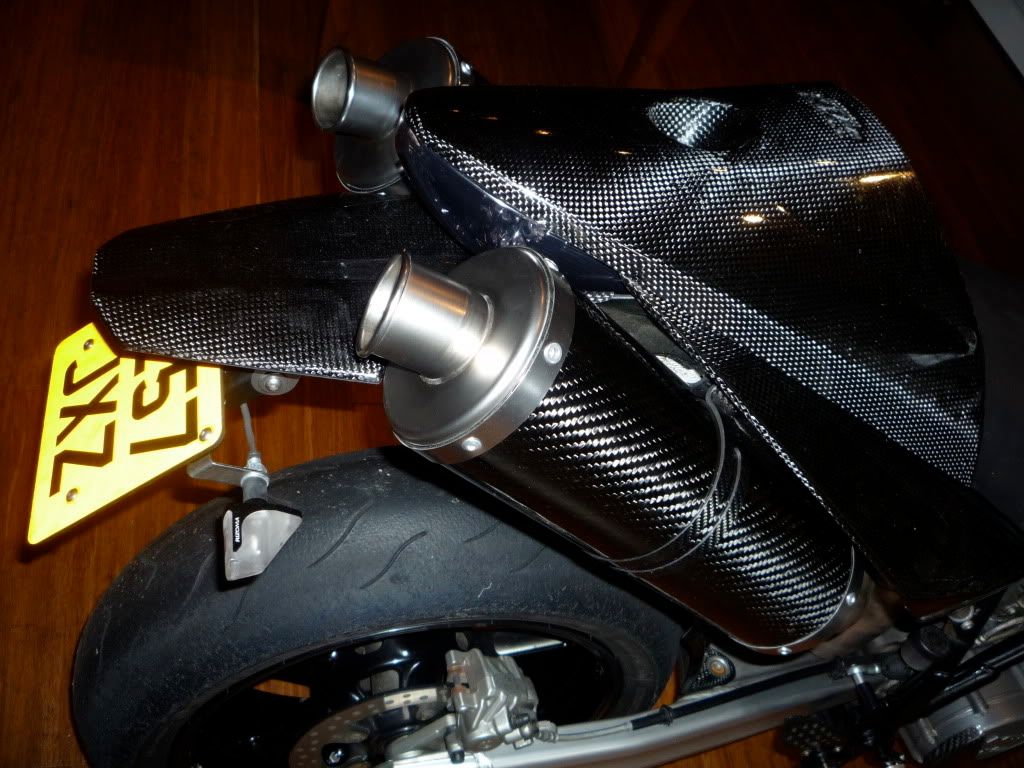

Finally I had the time to rebuild my Akras with the carbon sleeves. I love them. They are 45mm shorter than originals so they don't stick out the back as much and they sound a bit louder and a bit deeper note. (I think)

I used pop rivets and the three threaded nutserts per side, (same as the original cans), but of course because they are shortened you couldn't fit the heat shields anyway - I only did it because I'd gone to the trouble of finding the nutserts and buying a tool to fit them.

I used some of the original Akra packing, (the wire mesh and steel wool), and the rest I replaced with new glass packing. All in all a pretty easy job if you have the patience and time.


Post 2 by Superdan,

#2
Nice work Bic any difference in sound or have you not got that far?

Juts carbon wheels and sprocket cover to go

Post 3 by Jaybiker,

#3
Do yo like carbon

Post 4 by bic_bicknell,

#4
Post missing

This post could not be recovered from the original forum.

Post 5 by Superdan,

#5
Post missing

This post could not be recovered from the original forum.

Post 6 by motoronin,

#6
Post missing

This post could not be recovered from the original forum.

Post 7 by bic_bicknell,

#7
Right Superdan. You don't even need new sleeves, just drill out the rivets, cut the sleeve and the inner perforated pipe and then reassemble. You use the outer bands as a guide for where to drill the holes through the freshly cut sleeve end but don't try to align these with the end cap holes. It's much easier to turn the end caps a few degrees and drill new holes through these. The other end which hasn't been cut you can just re-rivet through the old holes.

The hardest part is getting the outer bands tight between each rivet so that they don't bow and leave a gap. You have to use a lot of masking tape to hold them down in place as you drill.

Why do you need new titanium sleeves? If your old ones are damaged you can have my old Ti. sleeves. I was going to throw them out. They are fine except for some vibration wear where the straps held them on. Let me know and I'll post them to you.

Post 8 by Superdan,

#8
Was asking more out of curiosity to be fair, I like this mod but a bit too much cost if I mess it up

You should hang onto the sleeves, I know Ducati Pete for one has damaged Akras (unless he fixed em) would save a fair few $$$ over the cost of new.

Post 9 by bic_bicknell,

#9
Post missing

This post could not be recovered from the original forum.

Post 10 by BASH69,

#10
Post missing

This post could not be recovered from the original forum.

Post 11 by gfunkmc,

#11
Post missing

This post could not be recovered from the original forum.

Post 12 by AndersH,

#12
Post missing

This post could not be recovered from the original forum.

Post 13 by bic_bicknell,

#13
Post missing

This post could not be recovered from the original forum.

Post 14 by bic_bicknell,

#14
Post missing

This post could not be recovered from the original forum.

Post 15 by Millar,

#15
Post missing

This post could not be recovered from the original forum.

Post 16 by Colonel_Klinck,

#16
Post missing

This post could not be recovered from the original forum.

Post 17 by BASH69,

#17
Post missing

This post could not be recovered from the original forum.

Post 18 by Twisted Jester,

#18
Post missing

This post could not be recovered from the original forum.

Post 19 by ktmguy,

#19
Post missing

This post could not be recovered from the original forum.

Post 20 by bic_bicknell,

#20
Post missing

This post could not be recovered from the original forum.

Post 21 by Millar,

#21
Post missing

This post could not be recovered from the original forum.

Post 22 by Resmas,

#22
Post missing

This post could not be recovered from the original forum.

Post 23 by Twisted Jester,

#23
Post missing

This post could not be recovered from the original forum.

Post 24 by Stratkat,

#24
Post missing

This post could not be recovered from the original forum.

Post 25 by Stratkat,

#25
Post missing

This post could not be recovered from the original forum.

Post 26 by ...BUZZ...,

#26
Post missing

This post could not be recovered from the original forum.

Post 27 by ...BUZZ...,

#27
Post missing

This post could not be recovered from the original forum.
