SD to SDR tail conversion

mrbubblehead

mrbubblehead

has anybody put a parts list together for converting a sd tail section to an sdr? if this list has all ready been put together could you point me in the right direction? i think twisted jester is in the process of the swap. no?
Twisted Jester

Twisted Jester

I posted it on another thread a while ago but images are still in my photobucket so here you go

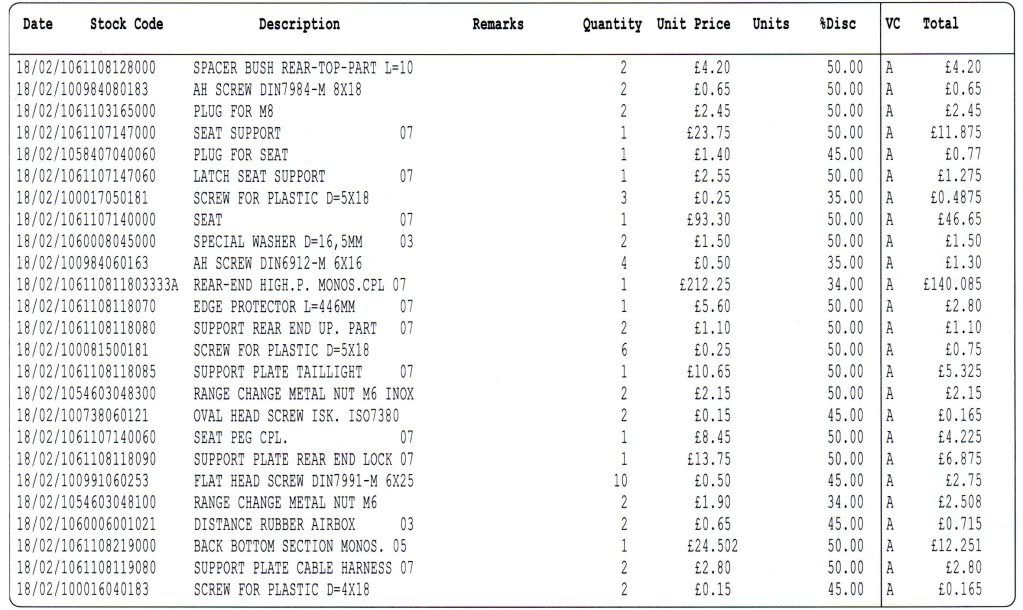

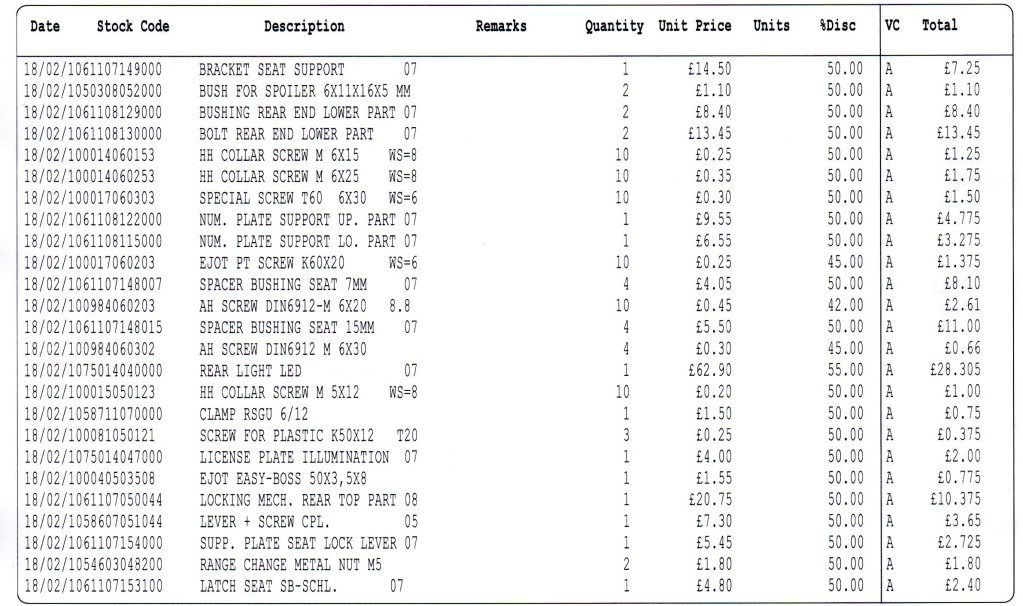

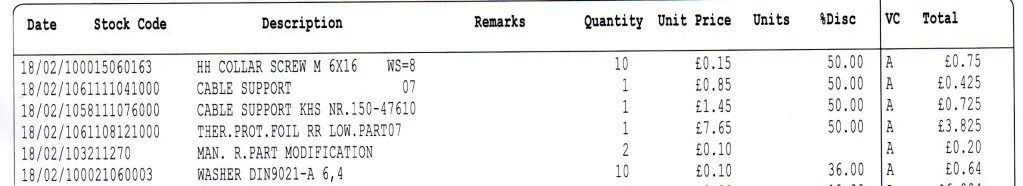

These are the part numbers for the 05-06 conversion to SDR, the undertray is different for the 07 onwards bikes but I do have that part number on the fitting instructions.





At least one of these part numbers I found out recently is specific to the conversion kit itself and cannot be ordered seperately and so I don't know how many others are the same.

The kit is heavily discounted over the cost of ordering the parts seperately as you should be able to see from these scans of my invoice.
samba

samba

where can you order the complete kit? Anyone want to part with theirs?

Brian
mrbubblehead

mrbubblehead

Post missing.

Twisted Jester

Twisted Jester

Post missing.

mrbubblehead

mrbubblehead

Post missing.

Ya Mother

Ya Mother

Post missing.

mrbubblehead

mrbubblehead

Post missing.

jcarlson9

jcarlson9

Post missing.

samba

samba

Post missing.

Twisted Jester

Twisted Jester

Post missing.

Dutch

Dutch

Post missing.

Twisted Jester

Twisted Jester

Post missing.
