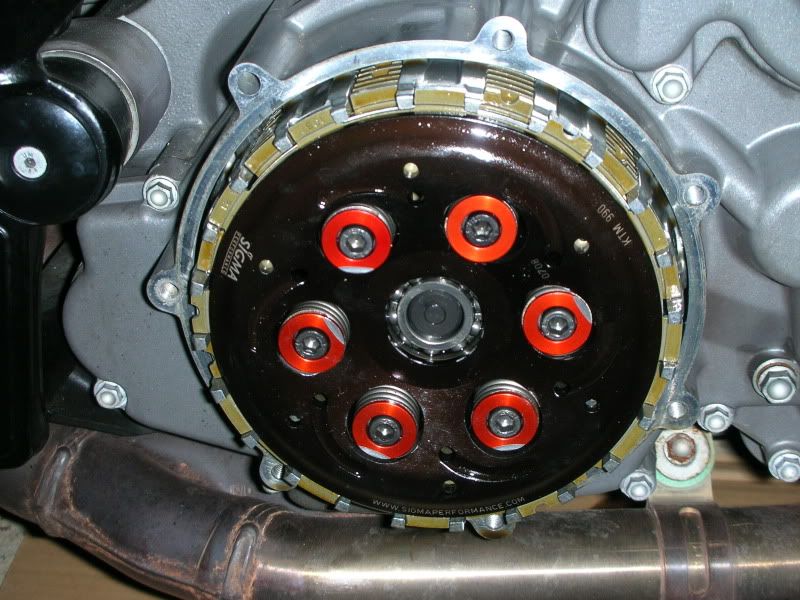

Ok fitted my Sigma Slipper Clutch:


But it wont let me pull in the clutch?

However if I undo the spring bolts 10mm it then works?! but clearly they are not then torqued in as far as they go? It looks like the Suzuki springs are too compressed almost.

Im stuck for ideas? Got all the parts I need im sure of it.

I put the clutch pack back in as I got it, however removing the last KTM metal plate replacing it with a thicker Suzuki one.

It says on instructions:
Install the standeard clutch plates in the basket in a different order to standard (DONE) install a small I/D friction plate, then a steel plate, then fit the chatter rings and then a large I/D friction plate, the rest of the plates fit exactly as they came apart.....

WTF are chatter rings and small/large I/D friction plates?? I just put it all in as per it came out pretty much.

None of my clutch plates seem to be worn excessively.

Will ring Sigma tomorrow but any help apprechiated.

Post 2 by Ducati Pete,

#2
Post missing

This post could not be recovered from the original forum.

Post 3 by Superdan,

#3
It says about 10NM.

BUT I have screwed the bolts all the way in? surely they should be bolted all the way in? otherwise how do I get it even all over, feels like the bolts are too short....
